XMCERA | ZrO2 Ceramic Disc Valve
– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –
Zirconia is mainly composed of zirconium dioxide. At room temperature, it is a material with high mechanical strength and strong fracture toughness in all major advanced ceramics. It can be used to manufacture cutting blades, scissors and knives. With it’s excellent surface smoothness, the material is also widely used in pump valve components, electronics, wearables decoration components.
| Properties | Units | Y2O3 Partially Stabilized Zirconia | Cerium Oxide Partially Stabilized Zirconia | MgO Partially Stabilized Zirconia | Zirconia Toughened Alumi |
| Density | gm/cc | 6.02 | 6.15 | 5.72 | 4.01 |
| Color | White | Yellow/Gray | Ivory | White | |
| Flexural Strength(MOR) | Mpa | 1240 | 800 | 900 | 450 |
| Elastic Modulus | Gpa | 210 | 200 | 200 | 360 |
| Poisson’s Ratio | 0.23 | 0.3 | 0.23 | ||
| Compressive Strength | Mpa | 2500 | 900 | 1750 | 2900 |
| Hardness | Gpa | 12.7 | >9 | 11.8 | 14.4 |
| Thermal Conductivity | W/m°K | 2.2 | 3.0 | 2.2 | 27.0 |
| Maximum Use Temperature | °C | 1500 | 500 | 1500 |
– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

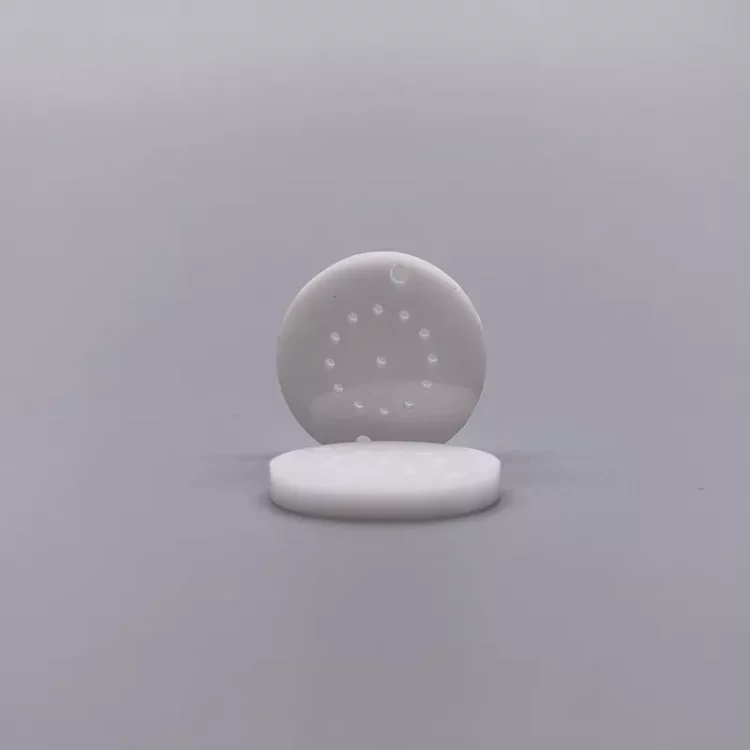

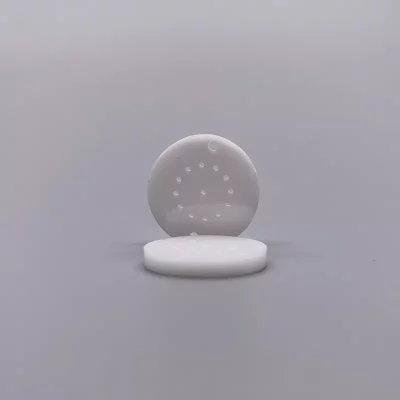

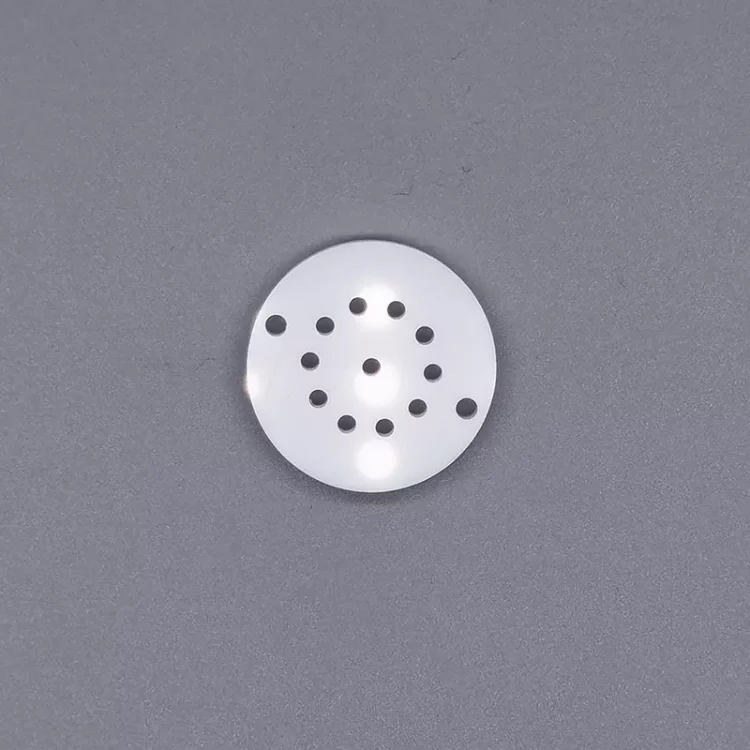

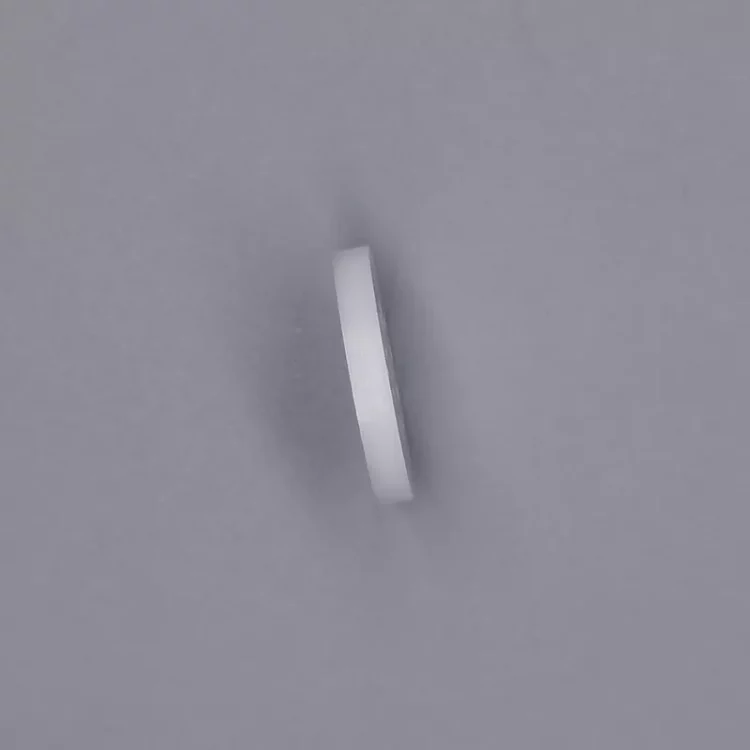

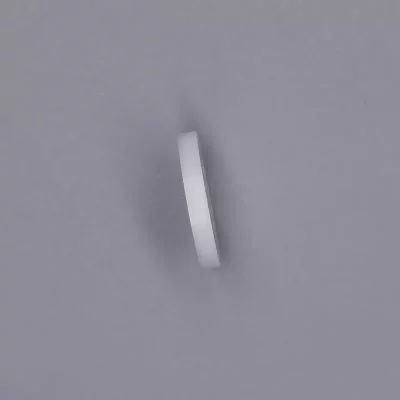

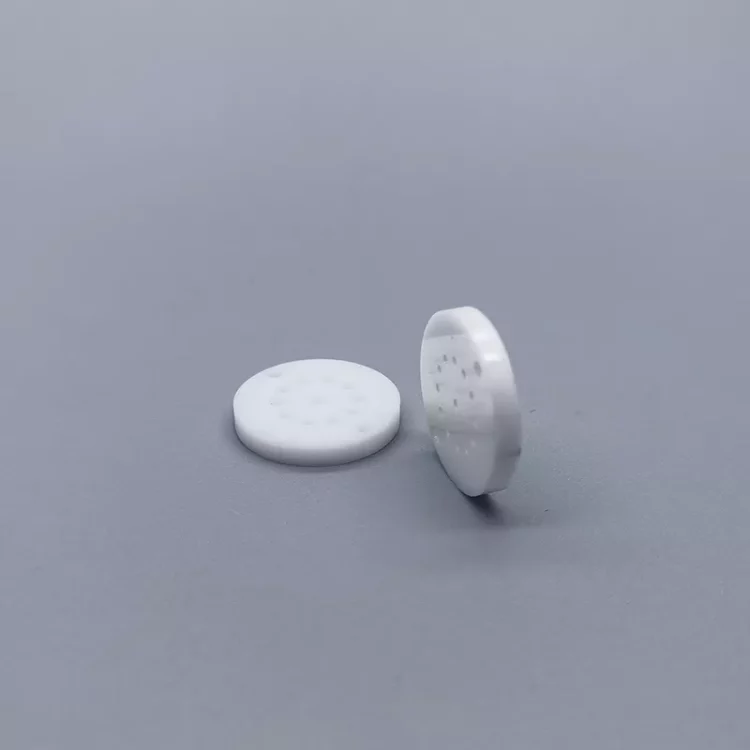

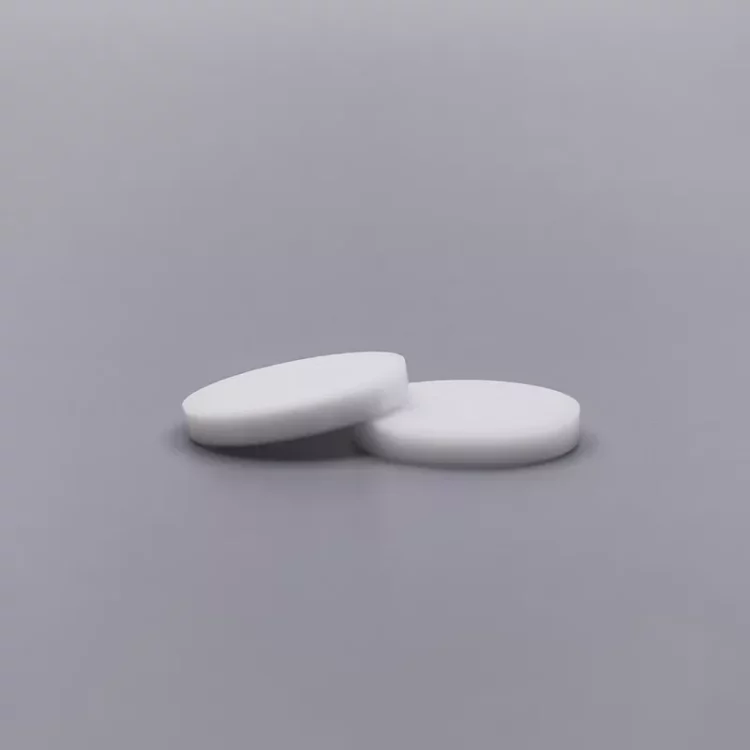

Zirconia ceramics are further processed into various zirconia ceramic parts, disc valve is one of them, although the metal disc valve after the improvement of structure and materials, has been greatly improved, but limited by the characteristics of metal materials, can not adapt to the needs of more and more high wear, strong corrosion and other harsh conditions, and then show short service life, serious leakage and other problems. The stability of system operation is greatly affected.
After using zirconia ceramic disc valve instead of disc valve, the above series of problems have been properly solved, that is because the thermal deformation of ceramic material is very small, light weight, and has much higher bonding strength than metal, excellent corrosion resistance, so it can better adapt to high wear, strong corrosion and other harsh conditions.
 Good Surface Finish |
 High Fracture Toughness |
 High Mechanical Strength |
 Excellent Wear Resistance |
In addition, grinding processing technology has also improved, making zirconia ceramic disc valve can be better formed, and the product is more widely used in petroleum, chemical, machinery and other fields, becoming one of the ideal substitutes for traditional metal water valve plate.
– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –
XMCERA engages in R&D, manufacturing and selling the products of advanced ceramic materials including Aluminum Nitride, Aluminum Oxide, Zirconium Oxide, Boron Nitride, Silicon Nitride, Machinable Glass Ceramic and other advanced materials. Through different manufacturing processes. We supply metallized ceramic components, alumina heater, ceramic pump components and other ceramic components as request.
XMCERA is a professional high-tech enterprise, it has 15 years history of R&D, manufacture and sales in advanced ceramic materials. We have ISO9001:2015 and ISO14001:2015, also cooperate with Chinese University in advanced materials. Many products are awarded as hi-tech products and obtain patents.
