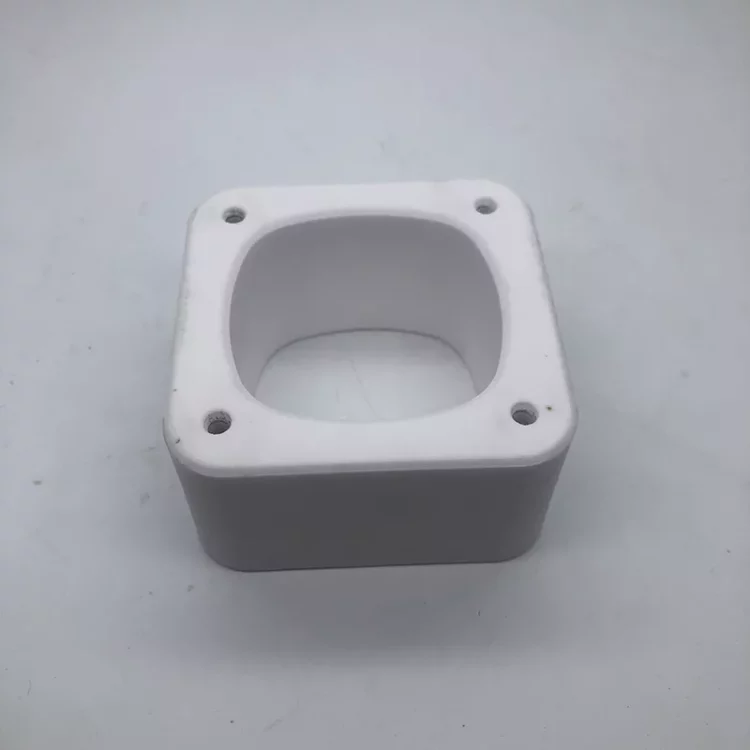

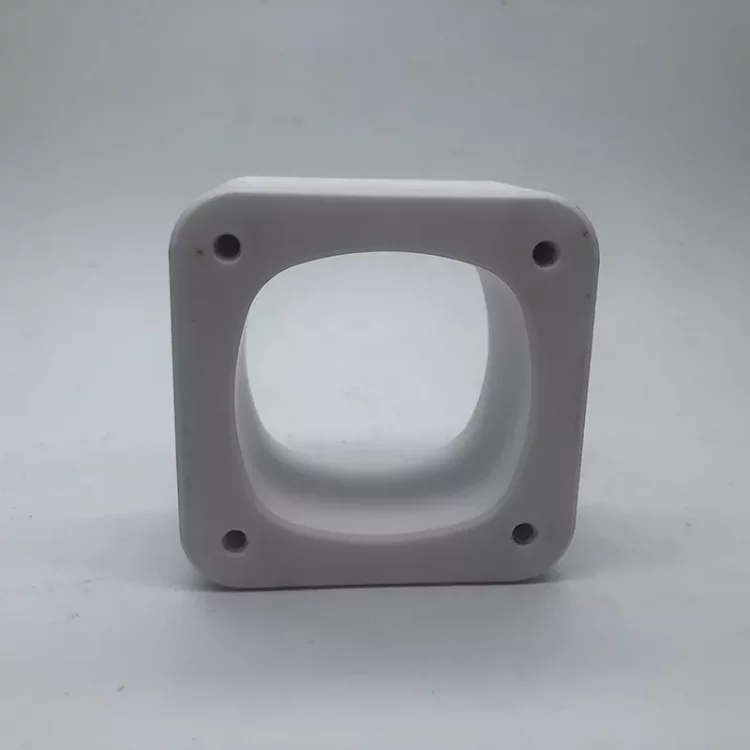

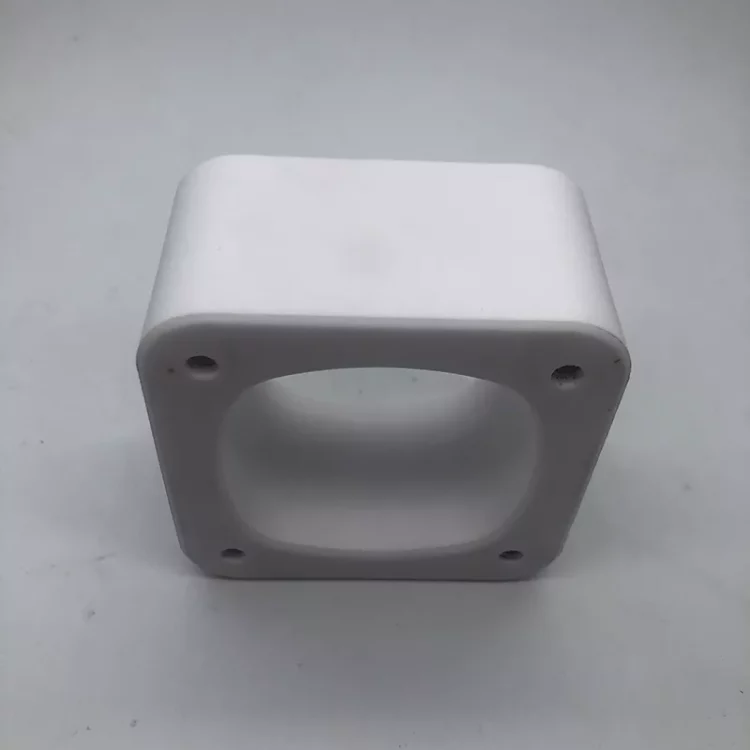

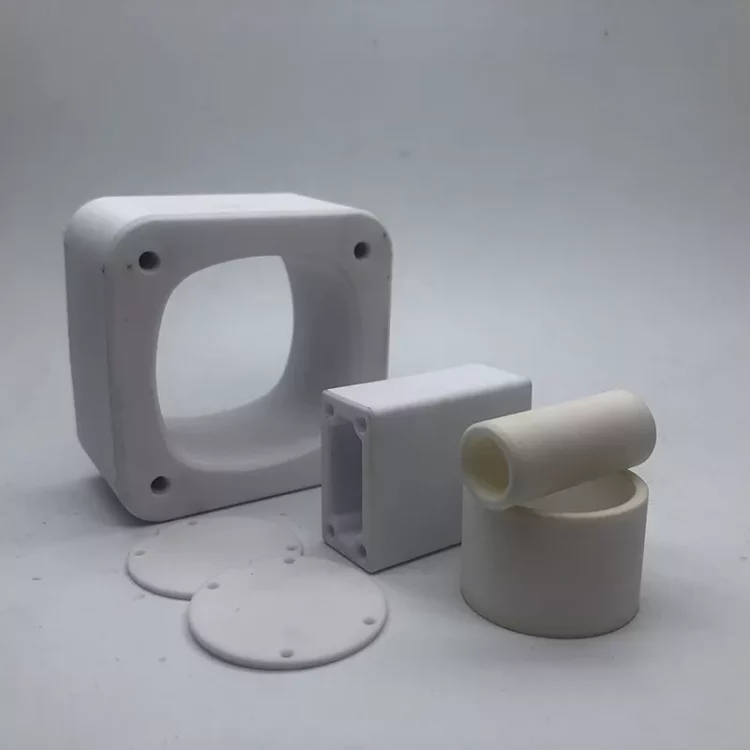

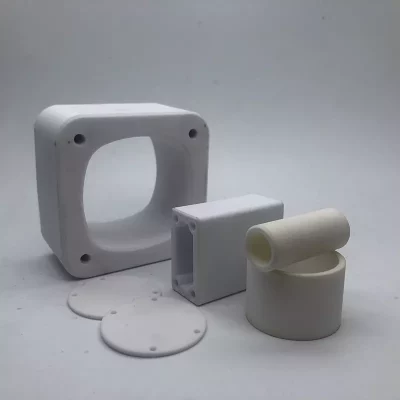

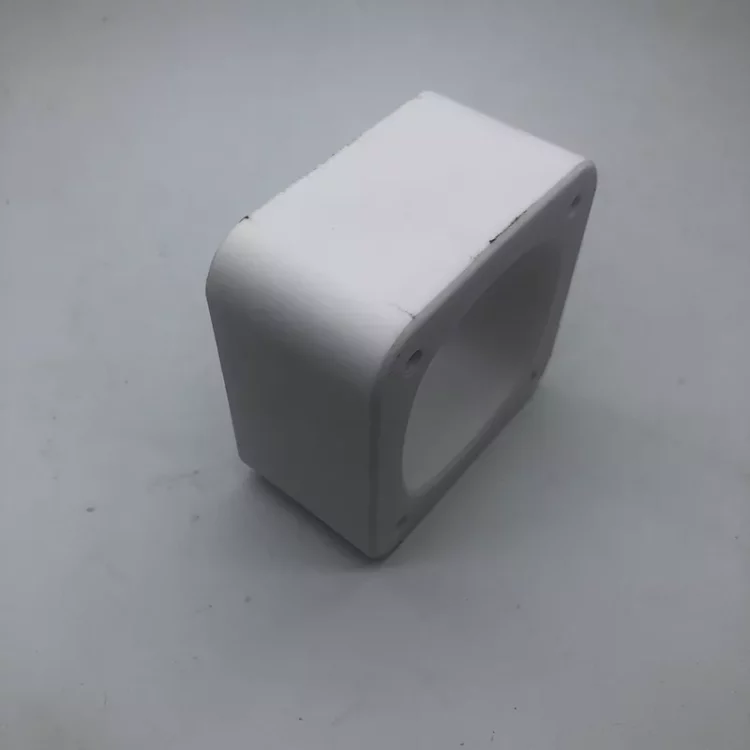

XMCERA | Al2O3 Ceramic Fuse Body
– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –
Alumina ceramics are the most common advanced ceramic materials and have been widely used in many industries, such as the electronic medical industry and the mechanical industry.
Alumina ceramics can be divided into several application grades according to their alumina purity, the more common are 95% alumina and 99% alumina, which have excellent physical properties.
| Properties | Units | 90% Al2O3 | 96% Al2O3 | 99% Al2O3 | 99.5% Al2O3 |
| Density | gm/cc | 3.60 | 3.72 | 3.80 | 3.90 |
| Color | White | White | Ivory | Ivory | |
| Flexural Strength(MOR) | Mpa | >230 | >280 | >300 | >300 |
| Elastic Modulus | Gpa | 276 | 303 | 250 | 370 |
| Poisson’s Ratio | 0.22 | 0.21 | 0.22 | 0.22 | |
| Compressive Strength | Mpa | 2482 | 2068 | 2500 | 2600 |
| Hardness | Gpa | 10.4 | 11.5 | 13.7 | 14.1 |
| Thermal Conductivity | W/m°K | 16.7 | 24.7 | 27.5 | 30.0 |
| Maximum Use Temperature | °C | 1500 | 1700 | 1700 | 1750 |
– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –
Ceramic fuse body is a kind of auxiliary equipment to protect home and workplace circuits, has a good circuit fault protection measures, has an extremely wide range of applications, has won many professional fuses in the field of experts and scholars praise and applause of the general public.
 High Chemical Resistant |
 High Mechanical Strength |
 High Frequency Insulation |
 High Temperature Resistance |
The main function of the ceramic fuse body is to protect the current, the fuse is composed of melt and melt tube, can be connected in series through the metal conductor in the circuit, when the current exceeds a certain value, the fuse can generate heat, melt, disconnect the current, to achieve the protection effect.
– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –
XMCERA engages in R&D, manufacturing and selling the products of advanced ceramic materials including Aluminum Nitride, Aluminum Oxide, Zirconium Oxide, Boron Nitride, Silicon Nitride, Machinable Glass Ceramic and other advanced materials. Through different manufacturing processes. We supply metallized ceramic components, alumina heater, ceramic pump components and other ceramic components as request.
XMCERA is a professional high-tech enterprise, it has 15 years history of R&D, manufacture and sales in advanced ceramic materials. We have ISO9001:2015 and ISO14001:2015, also cooperate with Chinese University in advanced materials. Many products are awarded as hi-tech products and obtain patents.
